Name: High Technique Anode Carbon Stacking Overhead Cranes 20t 25t 30t 35t Customized Multi Function Cranes PLC Control
Brand: ZEHUACRANES
Price: 18.00 USD
Availability: InStock

Home > Products > Multi Function Crane >

High Technique Anode Carbon Stacking Overhead Cranes 20t 25t 30t 35t Customized Multi Function Cranes PLC Control

Place of Origin:

Henan, China

Brand Name:

Zehua Crane

Certification:

CE ISO

Chat Now

Request A Quote

Product Details

Power:

50 Hz, 70hz, 60 Hz

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Bearing, Engine, Gearbox, Motor, Gear, Pressure Vessel, Pump

Application:

Factory

Rated Lifting Moment:

Design

Max. Lifting Load:

75 Tons/customized

Max. Lifting Height:

10 M, 7.5 M, 25 Meters, 15 Meters, 20 M

Span:

20m

Make:

Zehua Crane

Warranty:

3 Years

Weight (KG):

10000 Kg

Product Name:

Multi Function Anode Carbon Stacking Double Beam Overhead Crane

Lifting Mechanism:

Wire Rope Electric Hoist

Keywords:

Multi Function

Girder Type:

Double Overhead Crane

Lifting Capacity:

5ton~75ton

Power Supply:

AC-3Phase-220/230/380/400/415/440V-50/60Hz

Control Model:

Wireless Remote Control.cabin Control

Work Duty:

A5~A8

Material:

Q235B

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$18,000-19,900 / set

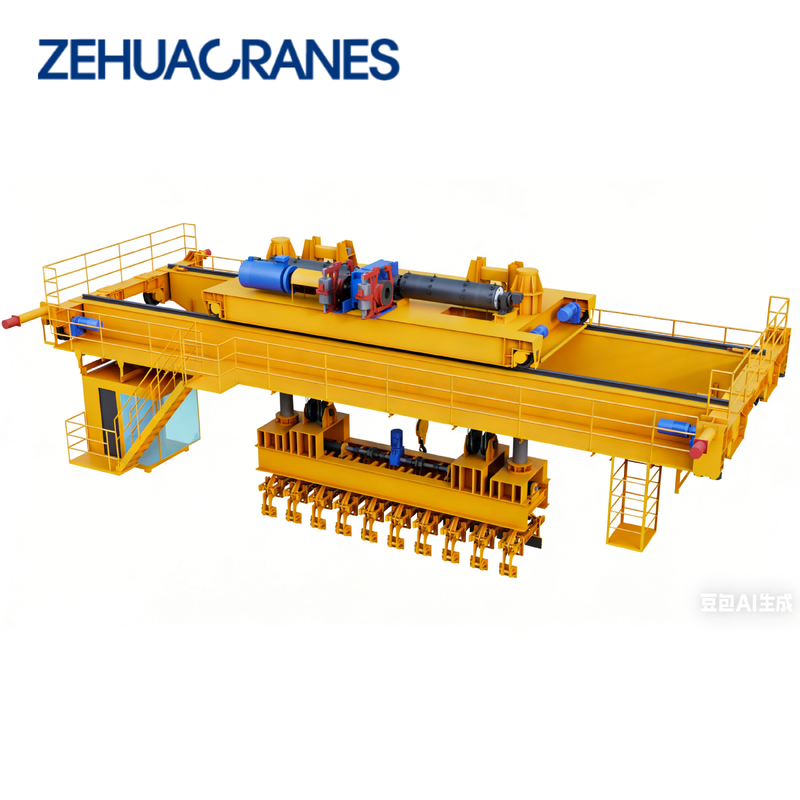

Anode Carbon Stacking Overhead Crane

The Anode Carbon Stacking Overhead Crane is specialized transfer equipment used in the carbon block warehouse of carbon plants. It mainly consists of the bridge, bridge traveling mechanism, hoisting mechanism, guiding device, clamp device, control system, and electric hoist. It is used for handling green and baked carbon blocks in the anode carbon block warehouse, as well as for other miscellaneous lifting tasks. Its integrated clamp can grip 19 or 21 longitudinally arranged anode carbon blocks per cycle for stacking or truck loading, and can also remove waste blocks and insert qualified blocks, with a stacking capacity of up to 9 layers.

The crane features dual-drive for bridge travel and adopts variable frequency control combined with PLC. All crane operations are performed from the operator's cab, which is equipped with an adjustable air conditioning system for heating and cooling.

contact us for more information！

Product Characteristic

1.With PLC as the core, it integrates laser positioning (stacking position recognition), barcode/RFID scanning (carbon block traceability), and a human-machine interface (operation and monitoring). It supports manual/automatic mode switching and can be interconnected with the factory MES system.

2.Hoisting and traveling mechanisms feature variable frequency speed control, low noise, low energy consumption, smooth operation, and a speed regulation range of 1:10, ensuring energy saving and consumption reduction.

3.The specialized clamp (mechanically or hydraulically driven) features a contour-matching design that conforms to the carbon block surface. It is equipped with adjustable clamping force (to prevent crushing of carbon blocks), anti-tilt cushioning functionality, and, in some models, rotational fine-tuning to accommodate deviations in carbon block placement.

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
