Name: Diesel Generator Powered Hydraulic Boat Lift Crane 300t 350t 4 Tires 8Tires Gantry Crane
Brand: ZEHUACRANES
Price: 100.00 USD
Availability: InStock

Home > Products > Boat Hoist >

Diesel Generator Powered Hydraulic Boat Lift Crane 300t 350t 4 Tires 8Tires Gantry Crane

Place of Origin:

Henan, China

Brand Name:

Zehua

Chat Now

Request A Quote

Product Details

Color:

Blue, Green, Yellow, White, Blue, Yellow, Green, White, Etc

Weight (KG):

20000

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Engine, Gearbox, Motor, Pump

Application:

All

Rated Loading Capacity:

100t 150t 200t

Rated Lifting Moment:

4500

Max. Lifting Height:

10m

Span:

15m 20m

Make:

Zehua

Warranty:

1 Year

Product Name:

Hydraulic Boat Lift Crane 300t 350t 4 Tires 8Tires Gantry Crane

Usage:

Ship, Boat, Vessel Moving & Lifting Crane

Power Supply:

Electric Motor, Hydraulic Pump, Diesel Engine

Capacity:

10t-1000ton

Applicaton:

Shipyard, Yacht Club,

Control Method:

Remote Control, Cabin Control

Lifting Mechanism:

Hydraulic Winch

Aftersales Service:

18months

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$80,000-120,000 / set

Diesel Generator Powered Hydraulic Boat Lift Crane 300t 350t 4 Tires 8Tires Gantry Crane

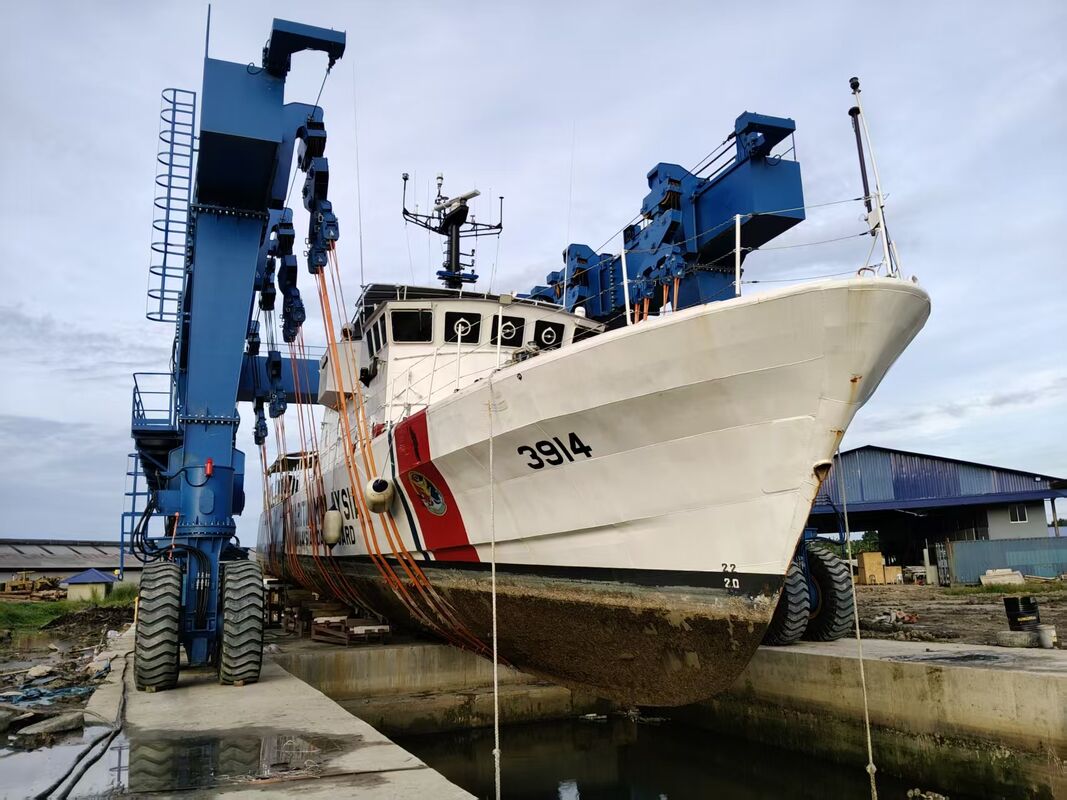

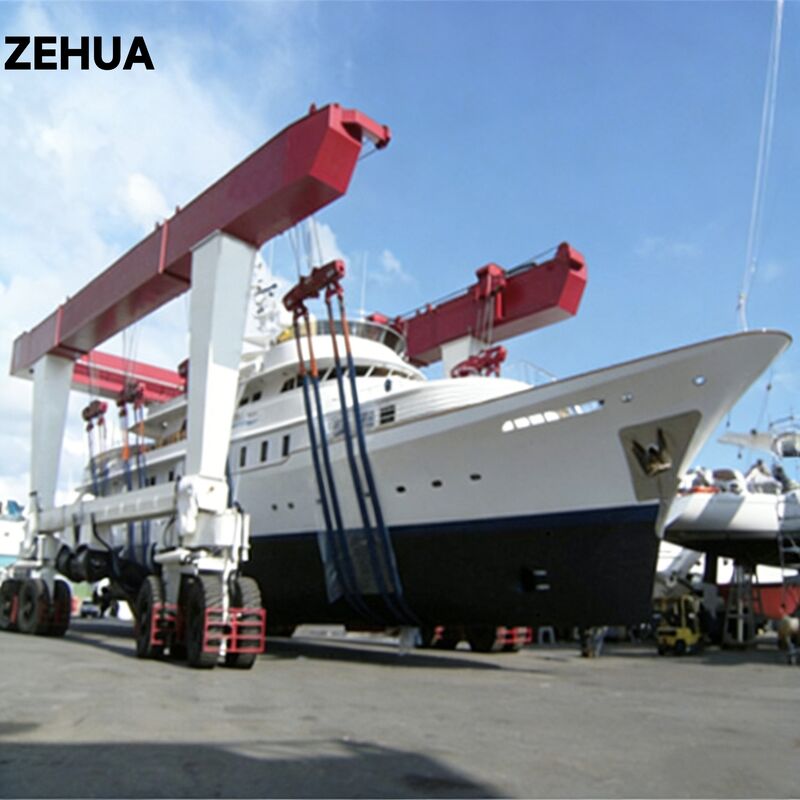

Yacht handling cranes, also known as boat handlers. It is widely used in water sports games, yacht clubs, navigation, shipping and learning, etc. The upper structure is double door frame "U" type connection framework to meet the different ship types lifting operation demand. It can transport different tonnage (10 tons - 1000 tons) of boats or yachts from the shore dock for on-shore maintenance, repair or launching of new vessels.
The Boat Hoist Crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system, electric control system, the main structure for the new type , it can transfer the boat which the height surpass its height.

contact us for more information！

Product Paramenters

Rated Capacity			100	150	200	300
Grounding Specific Pressure(kg/cm2)			11.5	11	11.5	6.5
Grade Ability(m/min)			2%	4%	4%	4%
Lifting Speed(m/min)	Full load	0~2	0~1	0~2	0~1
Lifting Speed(m/min)		Non-load	0~5	0~4	0~3	0~3
Running Speed(m/min)	Full load	0~20	0~20	0~20	0~20
Running Speed(m/min)		Non-load	0~35	0~35	0~35	0~35
Working Ambient Temperature			-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃

Contact me for more parameters and quotation !
