Name: Cabin Control Container Moving Straddler Carrier Diesel Power 20ft Container Straddler Carrier 60ton
Brand: ZEHUACRANES
Price: 135.00 USD
Availability: InStock

Home > Products > Rubber Tyre Gantry Crane >

Cabin Control Container Moving Straddler Carrier Diesel Power 20ft Container Straddler Carrier 60ton

Place of Origin:

Henan, China

Brand Name:

Zehua

Chat Now

Request A Quote

Product Details

Color:

Blue, Green, Yellow, White, Blue, Yellow, Green, White, Etc

Weight (KG):

20000

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Engine, Gearbox, Motor, Pump

Application:

All

Rated Loading Capacity:

100t 150t 200t

Rated Lifting Moment:

4500

Max. Lifting Height:

10m(32.81ft)

Span:

15m 20m

Make:

Zehua

Warranty:

1 Year

Product Name:

Cabin Control Container Diesel Power 20ft Contaier Straddler Carrier

Usage:

Dock, Container Loading& Unloading

Power Supply:

Electric Motor, Hydraulic Pump, Diesel Engine

Capacity:

10t-1000ton

Applicaton:

Shipyard, Yacht Club, Dock, Container

Control Method:

Remote Control, Cabin Control

Lifting Mechanism:

Hydraulic Winch

Aftersales Service:

12months

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$120,000-150,000 / set

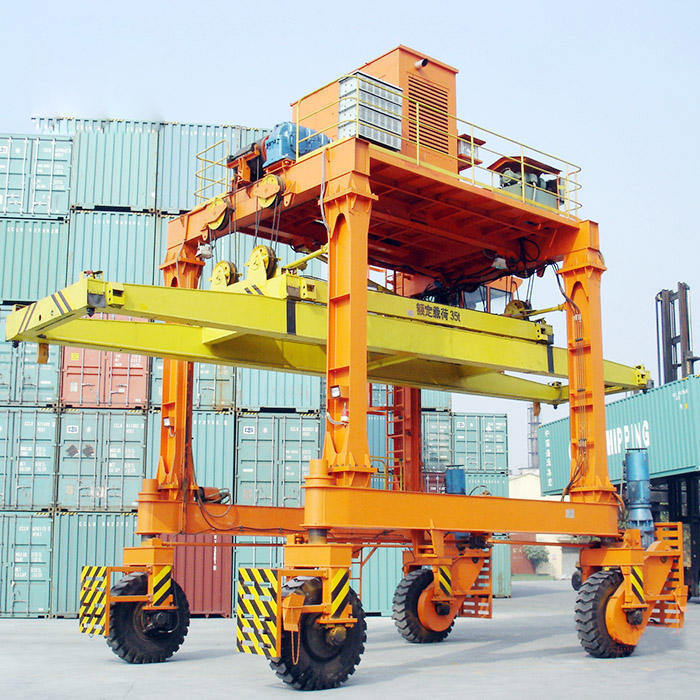

Cabin Control Container Moving Straddler Carrier Diesel Power 20ft Container Straddler Carrier 60ton

Rubber tyre container gantry crane (referred to as yard bridge) is suitable for port, wharf, logistics and other container yard or transfer station of international standard container handling and loading and unloading. It is supported on the inflatable rubber tire, often powered by diesel generator, and can also be powered by cable reel and lithium battery. It is composed of large car mechanism, small car assembly, gantry frame, power system and special container spadders.

Design, manufacture and inspect FEM, DIN, IEC, AWS, GB and other latest domestic and foreign standards. Zehua RTG has various functions, high efficiency, stability and reliability, a wide range of operations, good mobility, little sensitivity to ground unsmoothness, convenient use, maintenance, maintenance, the biggest characteristics of straight, horizontal, 0-90 degree steering and in situ rotation.

With perfect safety indication and overload protection device, to ensure the maximum safety of operators and equipment. Electric drive adopts full digital AC frequency conversion, PLC control speed regulation unique technology, flexible control, high precision. Standard with domestic and foreign famous brand purchased parts to ensure the quality of the machine.

contact us for more information！

Products Components

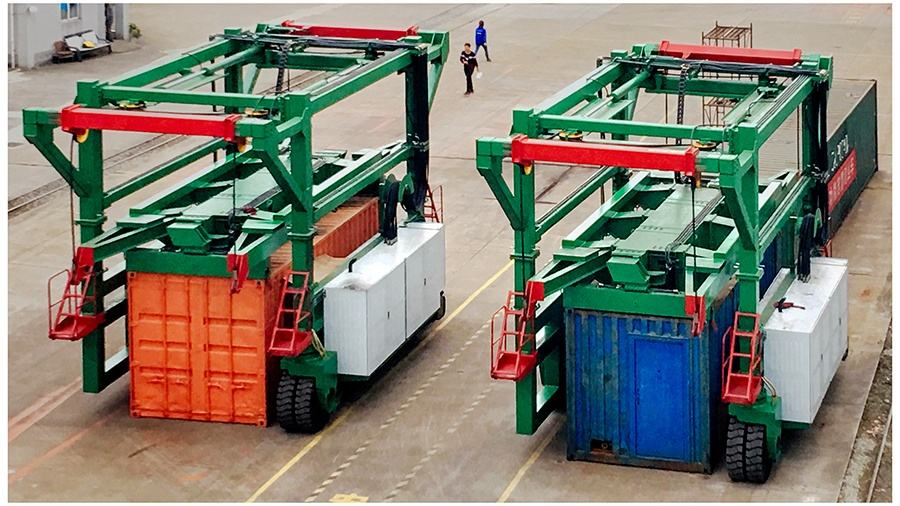

Cabin Control Container Moving Straddler Carrier Diesel Power 20ft Container Straddler Carrier 60ton

Rubber tyre Container Crane Features:

1, The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2, The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3, In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4, The working duty is A6-A7.
5, The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6, The crane which has the special requirement for working conditions, can be manufactured following the contracts.

Product Characteristics

1, the company provides a variety of power combination schemes (diesel units, mains, small power diesel units + lithium
batteries), energy saving and environmental protection;

2, the standard bidirectional flexible resistance anti-rocking system, optional multifunctional frequency conversion anti-rocking fidget system and electronic anti-rocking system, anti-rocking effect is remarkable, easy maintenance, improve the anti-rocking property of containers;

3. CMS intelligent service management system, real-time monitoring of equipment running status;

4, vector frequency conversion, electric energy feedback (power for mains or lithium battery), torque balance control technology, energy saving and environmental protection, convenient and efficient;

5. Automatic fault detection and real-time data display technology, safe and reliable;

6, special truck correction and fine tuning technology, personalized steering, jacking, anti-tipping design;

7, provide a variety of operation modes -- manual semi-automatic remote operation, advanced technology, stable performance;

8, with automatic operation positioning, intelligent box to box, trajectory intelligent control, intelligent safety protection and other core technologies;
9, wind alarm, security dynamic scanning and other safety measures are complete.

Product Paramenters

Model	LJ35/40-23	LightType LJ40-23
Capacity（under spreader）（t）	35,40	40
Work Duty	A7,A8	A6,A7
Span(m)	23.47	23.47
Lifting Height(m)	12.2~17.8	16.5
Stack Layers/Passing Layers	3/4~5/6	5/6
Container Model	20',40',45'	20',40',45'
Spreader Rotating Angle	±5°	±5°
Hoisting Speed(m/min)	13/26,23/52	12/18,18/28
Cross Travel Speed(m/min)	50,70	24
Long Travel Speed(m/min)	full load-90,without load-130	full load-20,without load-40
Max Wheel Load(kN)	310	310
Total Rating(kW)	150,230	110,150
Power Supply	Electric, Diesel Engine, Electric-Diesel Drive
