Name: Zehua Crane Overhead Crane 5 15 Ton Overhead Crane
Brand: ZEHUACRANES
Price: 455.00 USD
Availability: InStock

Home > Products > Overhead Crane >

Zehua Crane Overhead Crane 5 15 Ton Overhead Crane

Place of Origin:

Henan, China

Brand Name:

Zehua Crane

Certification:

CE ISO

Chat Now

Request A Quote

Product Details

Power:

50 Hz, 70hz, 60 Hz

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Bearing, Engine, Gearbox, Motor, Gear, Pressure Vessel, Pump

Application:

Factory

Max. Lifting Height:

10 M, 7.5 M, 25 Meters, 15 Meters, 20 M

Span:

20m(65.62ft)

Warranty:

1 Year

Weight (KG):

10000 Kg(22046.23lb)

Product Name:

Zehua Crane Overhead Crane 5 15 Ton Overhead Crane

Lifting Mechanism:

Wire Rope Electric Hoist

Keywords:

Overhead Crane Equipment

Girder Type:

Double Overhead Crane

Lifting Capacity:

5ton~320ton

Power Supply:

AC-3Phase-220/230/380/400/415/440V-50/60Hz

Control Model:

Wireless Remote Control.cabin Control

Work Duty:

A5~A8

Material:

Q235B

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$10,900 / set

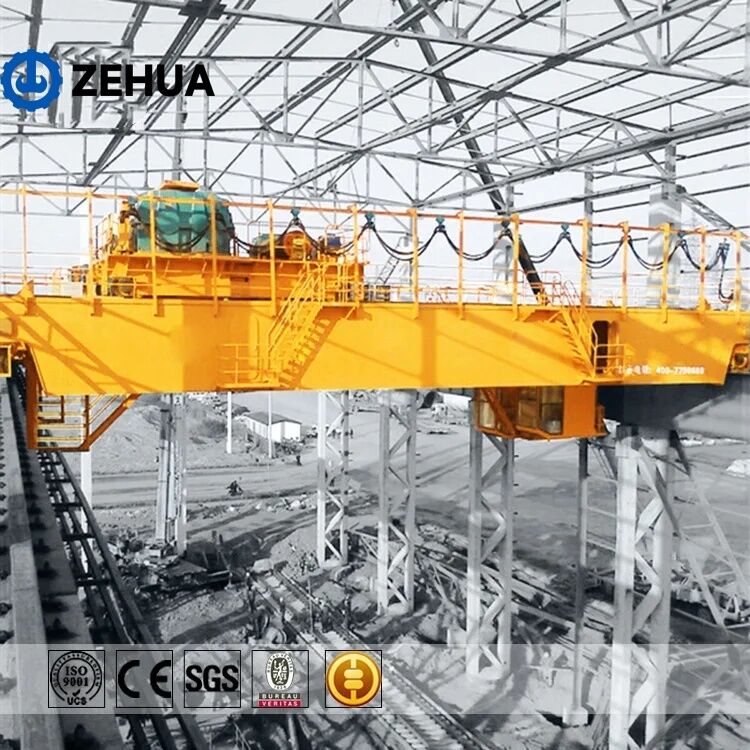

QD Double Girder Overhead Crane

QD model overhead crane with hook is mainly used in inside workshop. It is divided into two working classes: A5 and A6 according to the use grade and load-up condition. There are three kinds of method for entering the platform of cab from the side, from the end and from the top. The cab can be either fixed at the left end or at the right end. 4. Safe slide wire or angle iron can be used for electric conduction of the crane; it can be either at the opposite side of the cab or at the same-side of the cab. Operation of the crane shall be finished in cab completely.

contact us for more information！

Easy Load handling with precise

Certified according to most EX approvals.(Custom product)

Large rope drum diameter

keeps winch trolley compact.

Metal Plate Handling

Steel Coils & Paper industry

Special Applications

Smelting Metal Production

Recycling & Bulk Material

Smart Warehousing

Product Paramenters

Lifting Capacity(t)					5	10	16	20/5	32/5	50/10
Span(m)					10.5-31.5
Speed(m/min)	Main Hook Lifting	A5	11.3	8.5	7.9	7.2	7.5	5.9
	Main Hook Lifting			A6	15.6	13.3	13	12.3	9.5	7.8
		Aux. Hook Lifting					16.7	19.5	19.5	10.4
		Traveling of Crab			37.2	43.8	44.6	44.6	42.4	38.5
		Traveling of Trolley	A5	89.8/91.8	90.7/91.9/84.7	84.7/87.6	84.7/87.6	87/74.2	74.6
		Traveling of Trolley		A6	92.7/93.7	115.6/116/112.5	112.5/101.4	112.5/101.4	101.4/101.8	75/76.6
Operational Model	Cabin; Remote Control; Ground Handle
Working Duty	A5,A6
Power Supply	Three-phase A.C. 380V, 50Hz

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
