QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China

QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China

Place of Origin:

Henan, China

Brand Name:

Zehua

Certification:

CE ISO 9001

Chat Now
Request A Quote
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China
Product Details
Power:
50 Hz, 70hz, 60 Hz
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Gear
Application:
Factory/Workshop/Warehouse Indoor Use
Rated Lifting Moment:
As Requested
Max. Lifting Load:
5~100t, As Requested
Max. Lifting Height:
20 M, As Requested
Span:
20m Or As Requested, 5~20m Or More
Make:
Zehua
Warranty:
1 Year
Weight (KG):
5000 Kg
Product Name:
QD Type Double Girder Overhead Crane
Lifting Mechanism:
Trolley
Work Duty:
A3-A6
Lifting Capacity:
5t~100T
Lifting Height:
5~20m Or More
Control Method:
Cab/Pendant/Wireless Remote
After-sales Service Provided:
Yes
Usage:
Lifting Materials Factory/Workshop/Warehouse Indoor Use
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
$12,800-15,800 / piece
RELATED PRODUCTS
Contact Us
86-86-0373-7848888
sale@zehuacranes.com
86-86-0373-7848888
Chat Now
Product Description
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 0
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 2
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 4
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 6

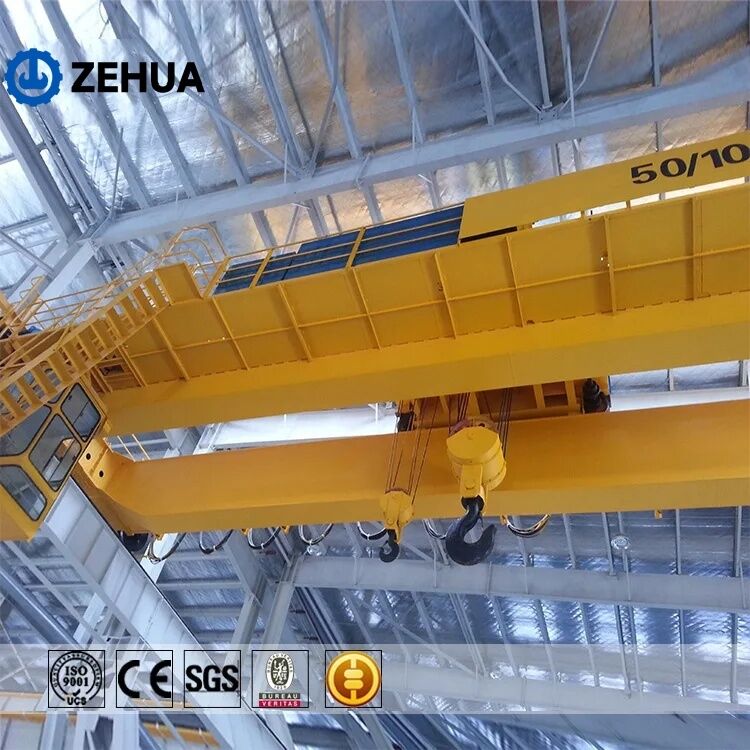

QD Type Double Girder Overhead Crane
Customized Lifting Capacity/Height/Span Double Beam Bridge Crane from China

QD model overhead crane with hook is mainly used in inside workshop. It is divided into two working classes: A5 and A6 according to the use grade and load-up condition. There are three kinds of method for entering the platform of cab from the side, from the end and from the top. The cab can be either fixed at the left end or at the right end. 4. Safe slide wire or angle iron can be used for electric conduction of the crane; it can be either at the opposite side of the cab or at the same-side of the cab. Operation of the crane shall be finished in cab completely.
contact us for more information！
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 8
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 10
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 8
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 14
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 8
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 18
Easy Load handling with precise
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 20
Certified according to most EX approvals.(Custom product)
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 22
Large rope drum diameter
keeps winch trolley compact.
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 24
Metal Plate Handling
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 26
Steel Coils & Paper industry
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 28
Special Applications
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 30
Smelting Metal Production
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 32
Recycling & Bulk Material
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 34
Smart Warehousing
Product Paramenters
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 36
Lifting Capacity(t)

5
10
16
20/5
32/5
50/10
Span(m)

10.5-31.5










Speed(m/min)
Main Hook Lifting
A5
11.3
8.5
7.9
7.2
7.5
5.9
A6
15.6
13.3
13
12.3
9.5
7.8
Aux. Hook Lifting



16.7
19.5
19.5
10.4
Traveling of Crab

37.2
43.8
44.6
44.6
42.4
38.5
Traveling of Trolley
A5
89.8/91.8
90.7/91.9/84.7
84.7/87.6
84.7/87.6
87/74.2
74.6
A6
92.7/93.7
115.6/116/112.5
112.5/101.4
112.5/101.4
101.4/101.8
75/76.6
Operational Model
Cabin; Remote Control; Ground Handle







Working Duty
A5,A6







Power Supply
Three-phase A.C. 380V, 50Hz







QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 38
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 40
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 42
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 44
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 46
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 48
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 50
QD Type Double Girder Overhead Crane Customized Lifting Capacity/Height/Span Double Beam Bridge Crane From China 52

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
