Name: High-Tech Intelligent RMG Rail Mounted Gantry Crane | Factory Direct | For Port Container Yard
Brand: ZEHUACRANES
Price: 3.00 USD
Availability: InStock

Home > Products > Port Crane >

High-Tech Intelligent RMG Rail Mounted Gantry Crane | Factory Direct | For Port Container Yard

Place of Origin:

Henan,China

Brand Name:

ZEHUA

Chat Now

Request A Quote

Product Details

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Gearbox, Motor

Application:

Port, Container Yard, Railway Station

Rated Loading Capacity:

50 Ton, 25 Ton, 30 Ton, 40 Ton, 35 Ton, Customizable

Rated Lifting Moment:

Customizable

Max. Lifting Height:

10 M, 15 Minutes, 2 M, 4 M, 20 M, 6 M, 25 Meters, Customizable

Span:

24.5m - 50m(Customizable)

Make:

ZEHUA

Warranty:

1 Year

Weight (KG):

120000 Kg(264554.71lb)

Product Name:

RMG Rail Mounted Gantry Crane

Lifting Mechanism:

Winch Lifting Mechanism

Control Method:

Cabin And Remote Control

Color:

Customized

Work Duty:

A6-A8

After-sales Service Provided:

Support

Power Source:

380V 50Hz / 440V 60Hz Industrial Electric

Material:

Carbon Steel, Alloy Steel

Travelling Method:

Rail Mounted Traveling

Lifting Speed:

8~18m/min

Payment & Shipping Terms

Minimum Order Quantity

Price

$3,000-3,300

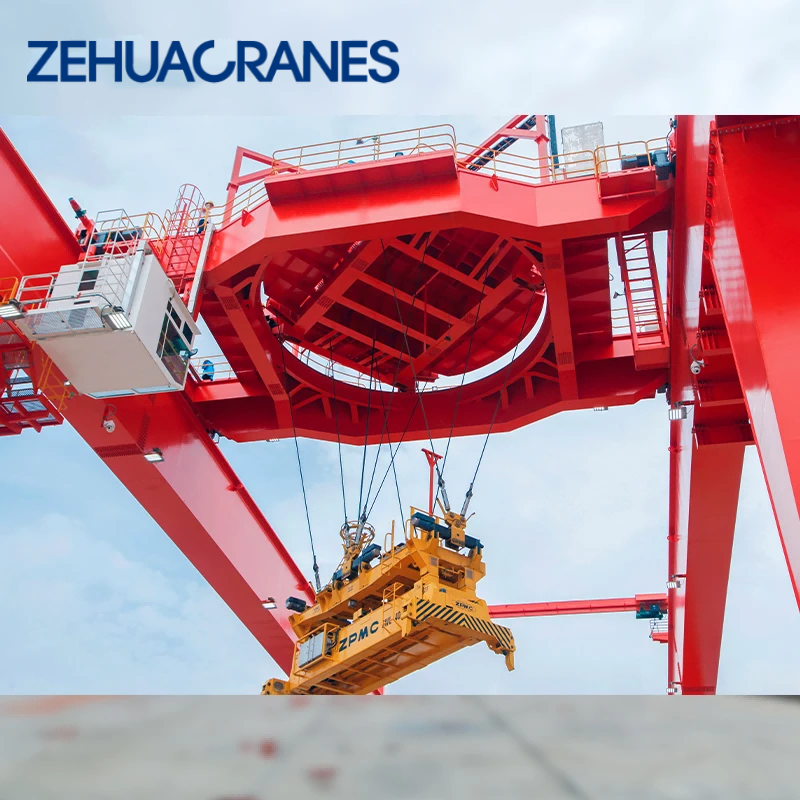

RMG Crane Rail Mounted Container Gantry Crane

The Rail-Mounted Container Gantry Crane (RMG) is suitable for handling and loading/unloading international standard containers and railway wide containers in container yards or transfer stations such as ports, docks, railways, and logistics hubs. It is supported on rails by multiple sets of steel wheels, powered by mains electricity, and consists of the gantry traveling mechanism, trolley assembly, gantry structure, power system, and container-specific spreader.

Its design, manufacturing, and inspection comply with the latest domestic and international standards, including FEM, DIN, IEC, AWS, and GB. ZEHUA RMG features diverse functions, high efficiency, stability and reliability, a wide operating range, and convenient use, maintenance, and servicing.

It is equipped with comprehensive safety indications and overload protection devices to maximize the safety of operators and equipment. The electrical drive system adopts unique full-digital AC variable frequency and PLC-controlled speed regulation technologies, offering flexible control and high precision. Standard configuration includes well-known domestic and international brand components to ensure the quality of the complete machine.

Product Characteristic

1. The company specializes in providing the following types of Rail-Mounted Gantry Cranes (RMG):

Top-slewing type (trolley slewing)
Bottom-slewing type (spreader slewing)
Cantilever and non-cantilever types
Railway-dedicated RMG

2. Standard configuration includes a bidirectional flexible resistance anti-sway system. Optional systems include a multi-function variable frequency anti-sway fine-tuning system and an electronic anti-sway system, delivering significant anti-sway performance, easy maintenance, and improved container sway resistance.

3. CMS intelligent service management system for real-time monitoring of all equipment operating statuses.

4. Vector variable frequency, energy feedback, and torque balance control technologies – energy-saving, environmentally friendly, convenient, and highly efficient.

5. Automatic fault detection and real-time data display technology – safe and reliable.

6. Multiple operation modes available: manual, semi-automatic, fully automatic, and remote operation – advanced technology with stable performance.

7. Core technologies include automatic positioning for traveling, intelligent container alignment and landing, intelligent
trajectory control, and intelligent safety protection.

8. Comprehensive safety measures such as high wind alarm and safety dynamic scanning system are fully equipped.

Product Paramenters

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
