Rail-Mounted Heavy Duty Crane Harbour System for Dock Operations

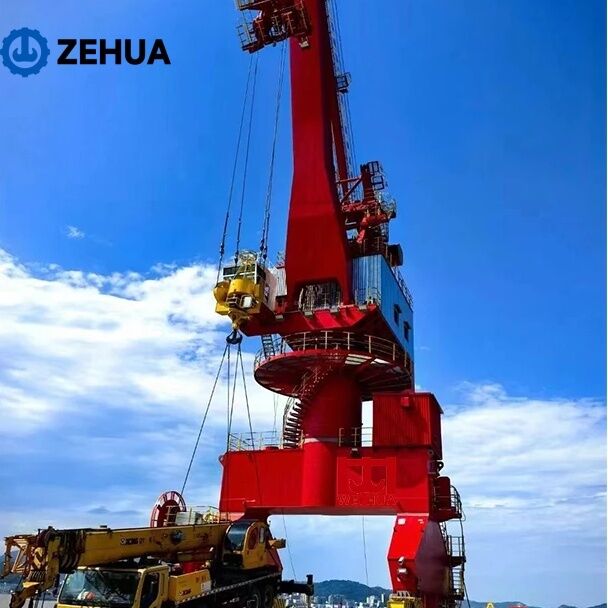

What is Rail Mounted Harbor Portal Crane?

A rail-mounted harbor portal crane is a specialized, heavy-duty jib portal crane deployed along dockside rail tracks for intensive crane harbour operations.

• Working Principle: Moving along ground-level rails, the crane utilizes continuous 360-degree slewing (1.5 R/min), variable luffing (30–50 m/min), and adjustable-speed hoisting across working radii from 8.5 m to 100 m to load and unload vessels, railcars, and trucks.

• Structural Jib Configurations:

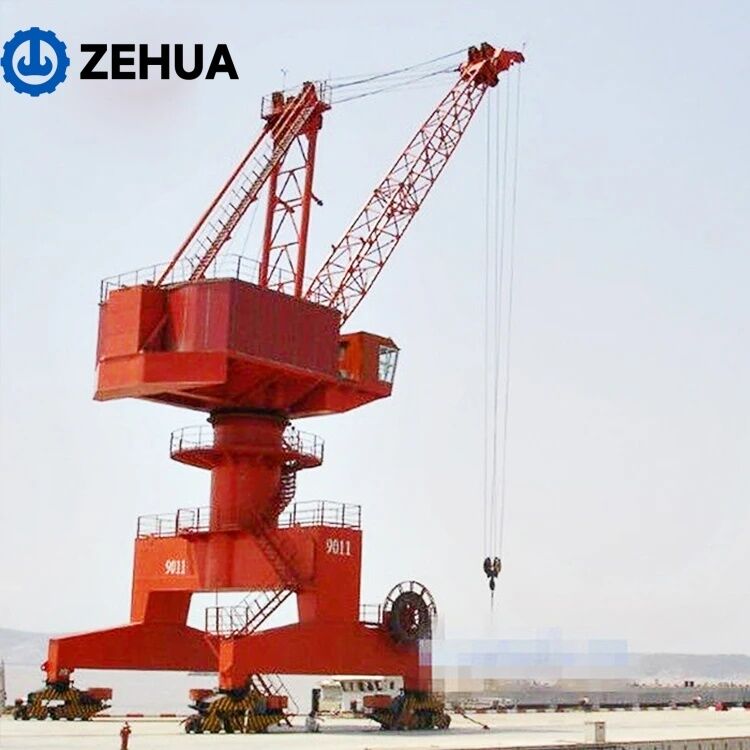

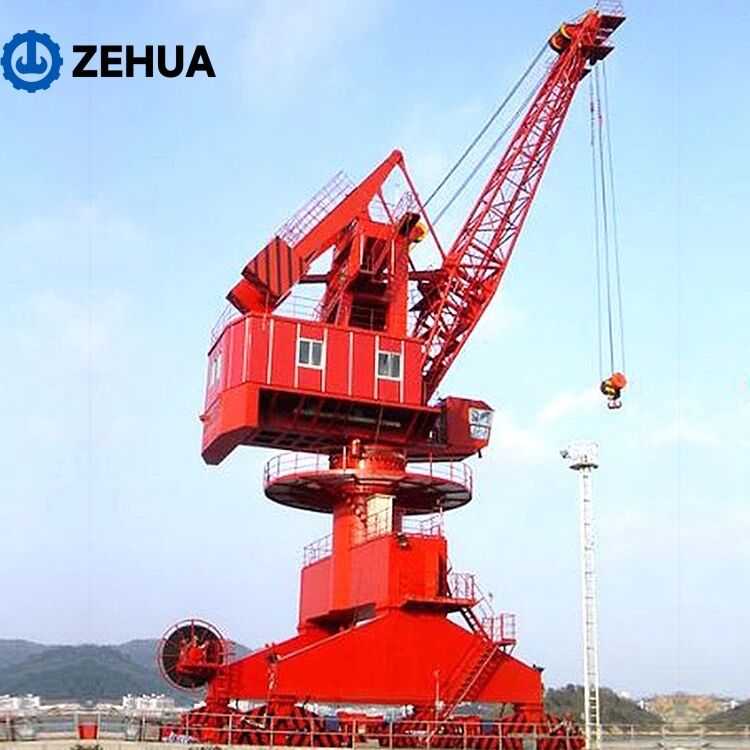

  • Single-Jib Type: Features a simplified structural design, lighter dead weight, and strong lifting capability, making it a cost-effective option for general breakbulk handling.

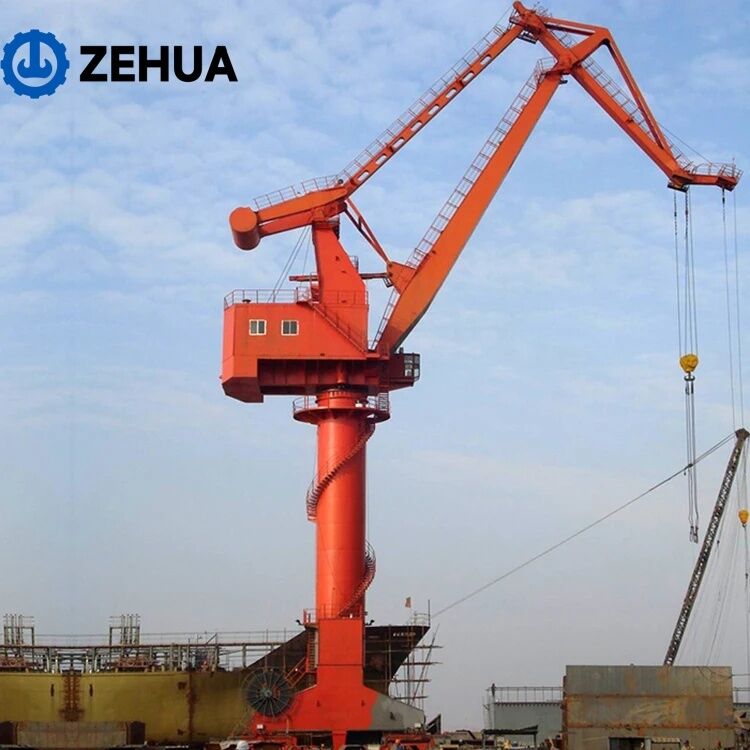

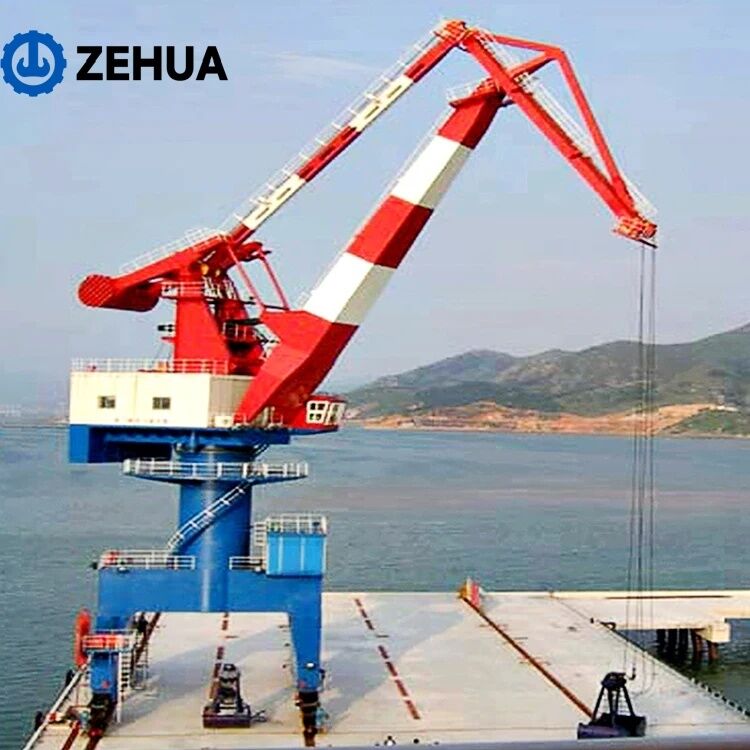

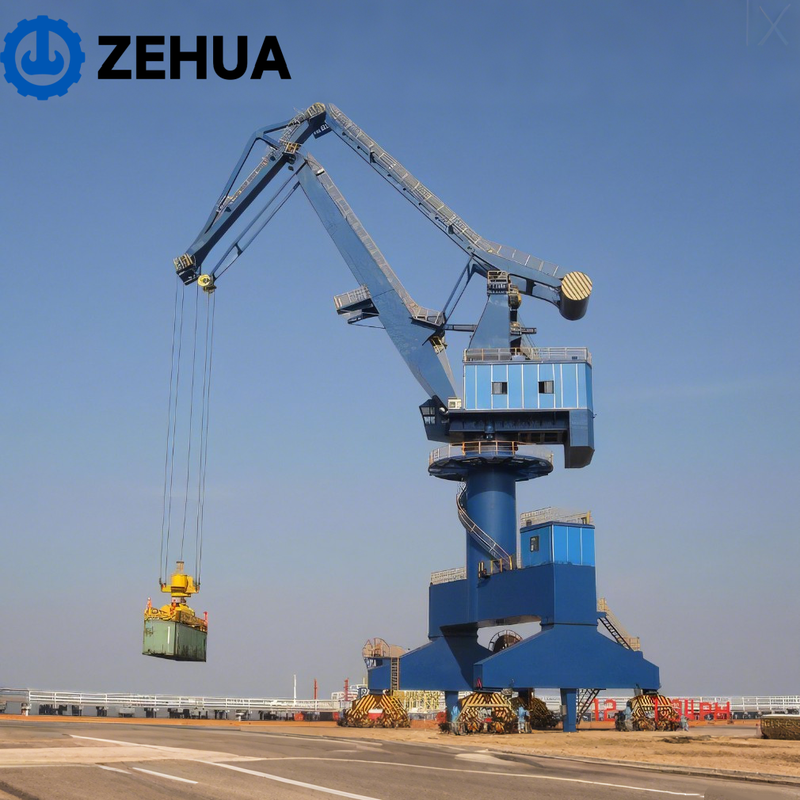

  • Four-Bar Linkage Type: Uses a combined lever jib mechanism that maintains horizontal cargo trajectory during luffing operations. This design minimizes load elevation shifts, ensures smooth movement, and lowers energy consumption during continuous heavy operations.

• Main Assemblies: Consists of a rail-traveling gantry portal, slewing platform, lattice or box jib boom, enclosed operator cabin, machinery house (housing pressure vessels, gearboxes, and motors), and centralized PLC electrical controls.

Key Features

• Robust Structure: Heavy-duty steel portal frame built for A5 to A8 work duties, supporting heavy structural dead weights up to 45,026 kg in busy crane harbour environments.

• High Safety Performance: Integrated overload cutoffs, storm rail locks, emergency braking, pressure vessel safety features, and anti-collision monitoring.

• Precise Load Control: Driven by a PLC automation system with variable-speed hoisting for accurate load positioning across working radii up to 100 meters.

• Easy Maintenance: Ergonomic machinery room layout with accessible bearings, gearboxes, motors, and centralized lubrication points.

• Long Service Life: Applied with marine-grade protective coatings and hardened gear systems to withstand aggressive salt spray in coastal crane harbour setups.

• Energy Efficiency: Four-bar linkage luffing minimizes vertical load displacement, significantly reducing motor power usage during high-frequency cycles.

Technical Specifications

Applications

• Harbors & Docks: Handles container loading, breakbulk cargo transfer, and heavy freight distribution in commercial crane harbour zones.

• Shipyards: Assists in hull block positioning, steel plate handling, and major machinery placement along dry docks.

• Steel Mills: Moves heavy steel coils, billets, and raw scrap metal at waterfront industrial terminals.

• Warehouses & Logistics Hubs: Connects dockside rail lines with storage yards to streamline intermodal freight transfer.

• Power Plants: Offloads massive power generation modules, turbines, boilers, and transformers at receiving docks.

• Mining Industry: Facilitates bulk ore transfer and heavy mining equipment handling at coastal export terminals.

Why Choose Zehua

• Professional Crane Manufacturing Experience: Based in Henan, China, Zehua is an original equipment manufacturer specializing in high-capacity overhead, gantry, jib, and portal cranes.

• Customized Design Capability: We tailor crane harbour machinery—adjusting rail spans, jib lengths, lifting heights, and duty ratings—to integrate directly into your facility layout.

• International Quality Standards: Equipment design and manufacturing adhere to FEM, DIN, IEC, AWS, and international safety standards.

• Strict Quality Inspection: Every crane undergoes complete structural evaluation, weld inspection, and certified Machinery Test Reports prior to shipment.

• After-Sales Support: Supported by a 1-year warranty, global remote installation guidance, site commissioning assistance, and long-term spare parts supply.

Installation & Maintenance

• Installation Requirements: Port rails and dock foundations must be pre-aligned to support heavy portal wheel loads, supported by terminal power hookups and auxiliary mobile cranes during erection.

• Daily Inspection Points: Inspect wire ropes, braking systems, slewing ring lubrication, safety limit switches, rail clamps, and pressure vessels before operating in the crane harbour area.

• Maintenance Recommendations: Perform scheduled checks on gearbox oil levels, monitor PLC diagnostic logs, inspect structural welds, and refresh anti-corrosion protective coatings.

• Spare Parts Availability: Zehua maintains factory inventory for core replacement parts—including bearings, motors, gear sets, seal kits, and PLC modules—for fast international dispatch.

Frequently Asked Questions (FAQ)

Q: What is the lifting capacity and working radius of a Zehua crane harbour portal system?

A: Zehua crane harbour portal systems offer rated loading capacities ranging from 20 to 100 tons (with standard models including 20 Ton and 70 Ton options) and a flexible working radius extending from 8.5m to 100m.

Q: How do single-jib and four-bar linkage crane harbour portal designs differ?

A: Single-jib designs offer structural simplicity, lighter dead weight, and high cost-efficiency. Four-bar linkage designs maintain a horizontal load trajectory during luffing, minimizing elevation shifts and reducing motor power consumption during continuous heavy bulk handling.

Q: Does Zehua support custom engineering for dock crane and crane harbour configurations?

A: Yes. As a direct crane manufacturer, Zehua provides custom engineering to adjust rail gauge, boom reach, lifting height, power supply, and paint color to match your specific terminal layout.

Q: How long does on-site crane harbour installation and commissioning take?

A: Site erection, rail alignment, and load testing typically take between 3 to 6 weeks, depending on foundation readiness, weather conditions, and site equipment availability.
